Cartridge Wire Cloth WU Series Suction Filter for Construction Equipment

Wire mesh element effectively filters particles in hydraulic oil
Protects pumps and valves, extends system life
Cartridge design for easy maintenance
Washable element, cost-effective and durable
Wire cloth option available for construction equipment
Compact and versatile for various hydraulic systems

Quantity:
Availability:





Inquire Add to Basket

Product Description

SPECIFICATIONS

Type of Construction: Inside Tank Mounted

Connection:Flange/Thread

Operating Temp: -40℃~+120℃

Range of Flow: 16~1000L/min

Filter Media: Wire Mesh

Fluid Compatibility: Suitable for Mineral oil, synthetic oil

Please contact our sales staff if there is any additional media you need.

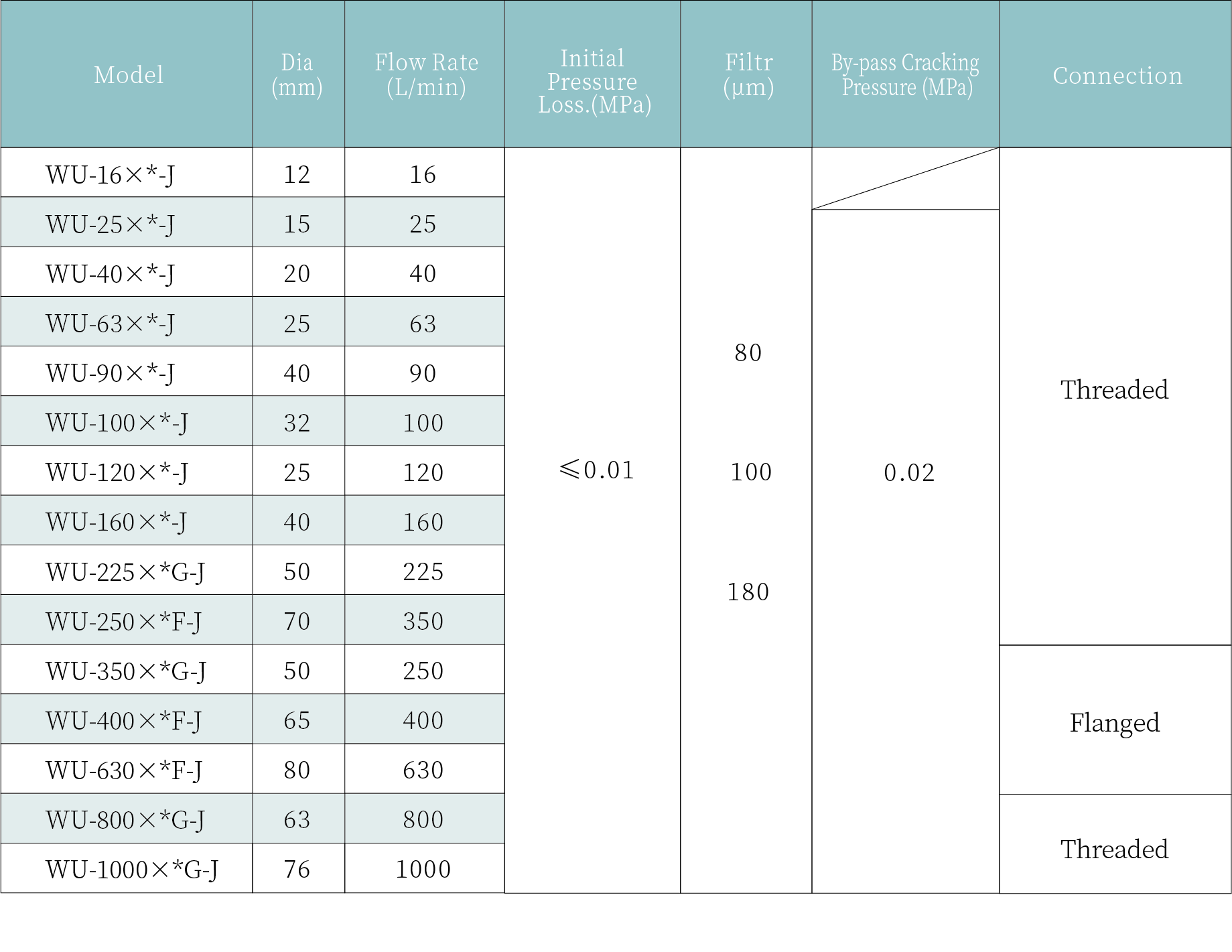

TECHNICAL PARAMETER

资源 14x

Note: *represents filtration accuracy, if the fluid medium is water-glycol, with indicator, flow rate is 100L/min, filtration accuracy is 80μm, then the model of filter is WUI·BH-100×80-J.

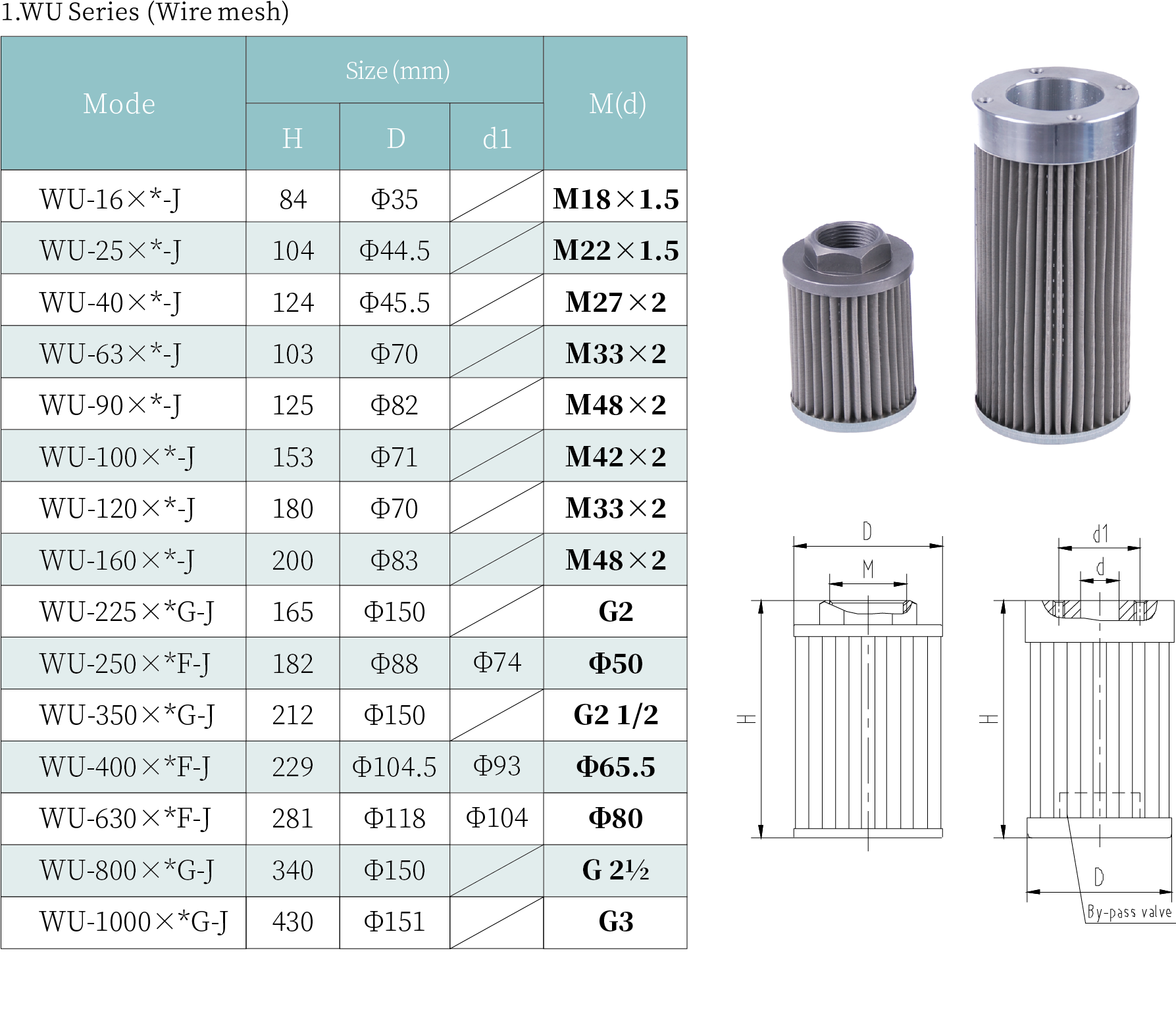

MOUNTING DIMENSION

资源 24x

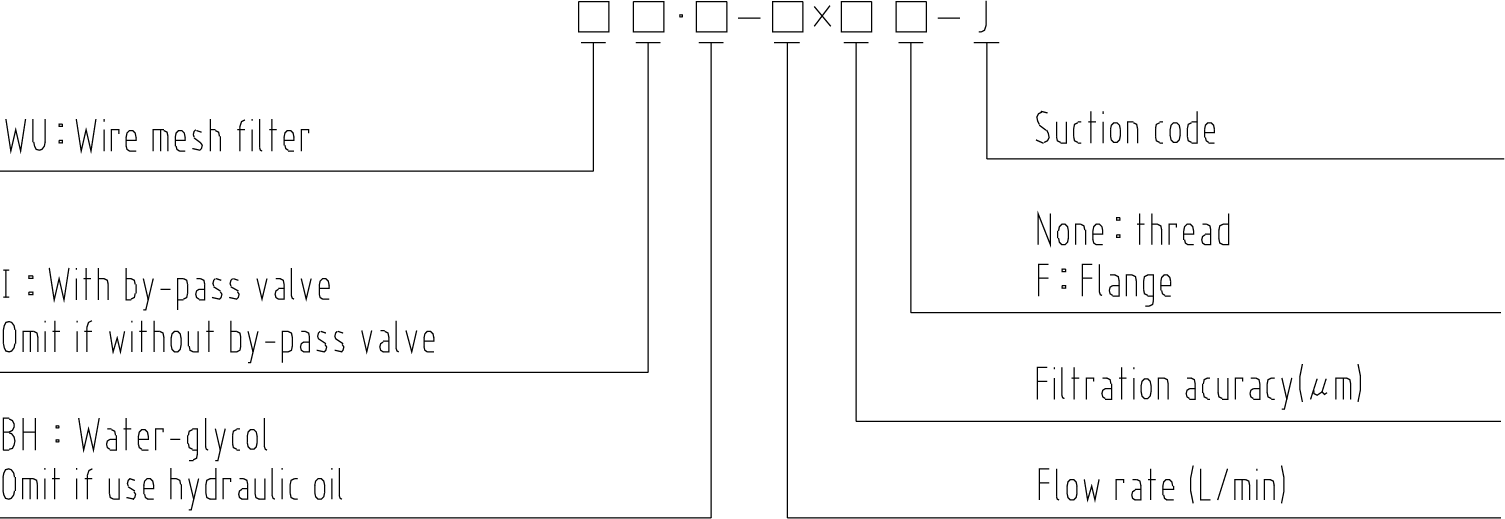

MODEL CODE

资源 34x

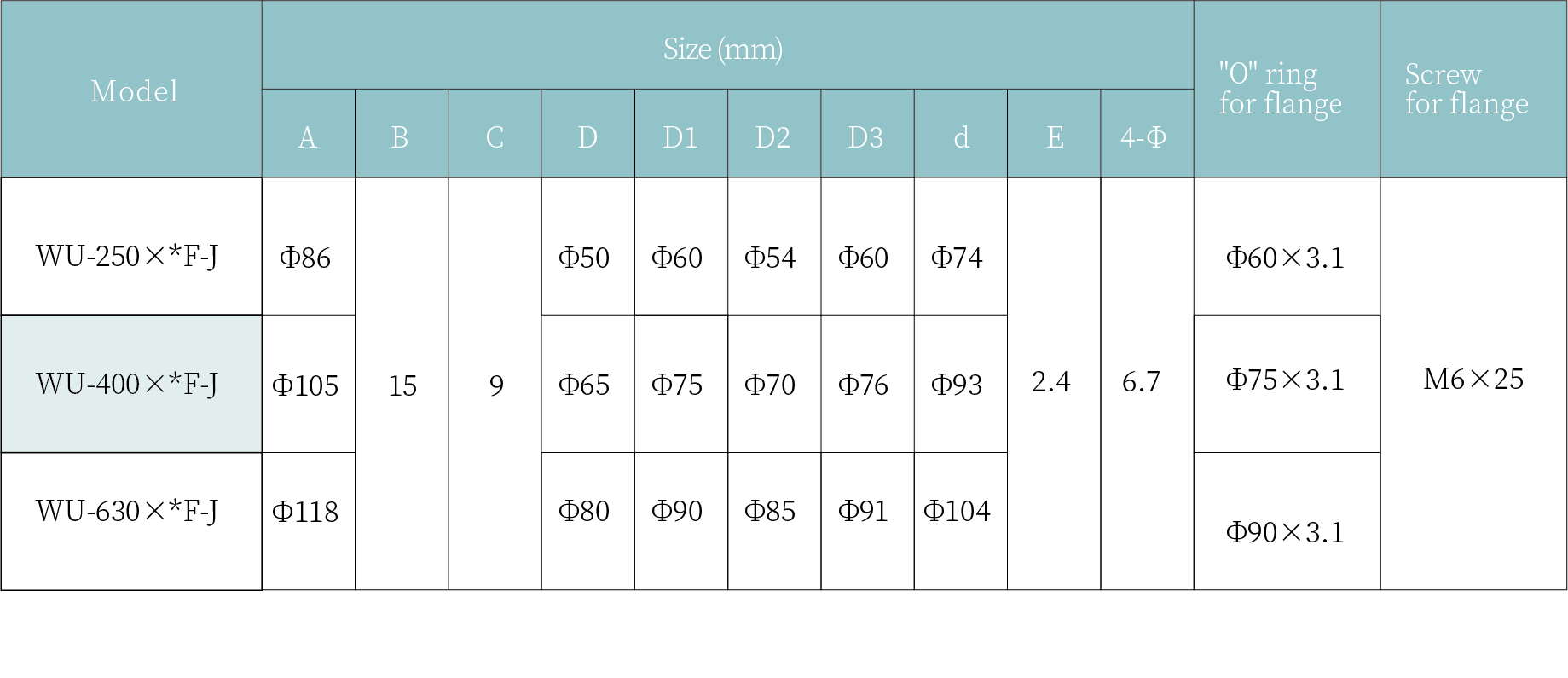

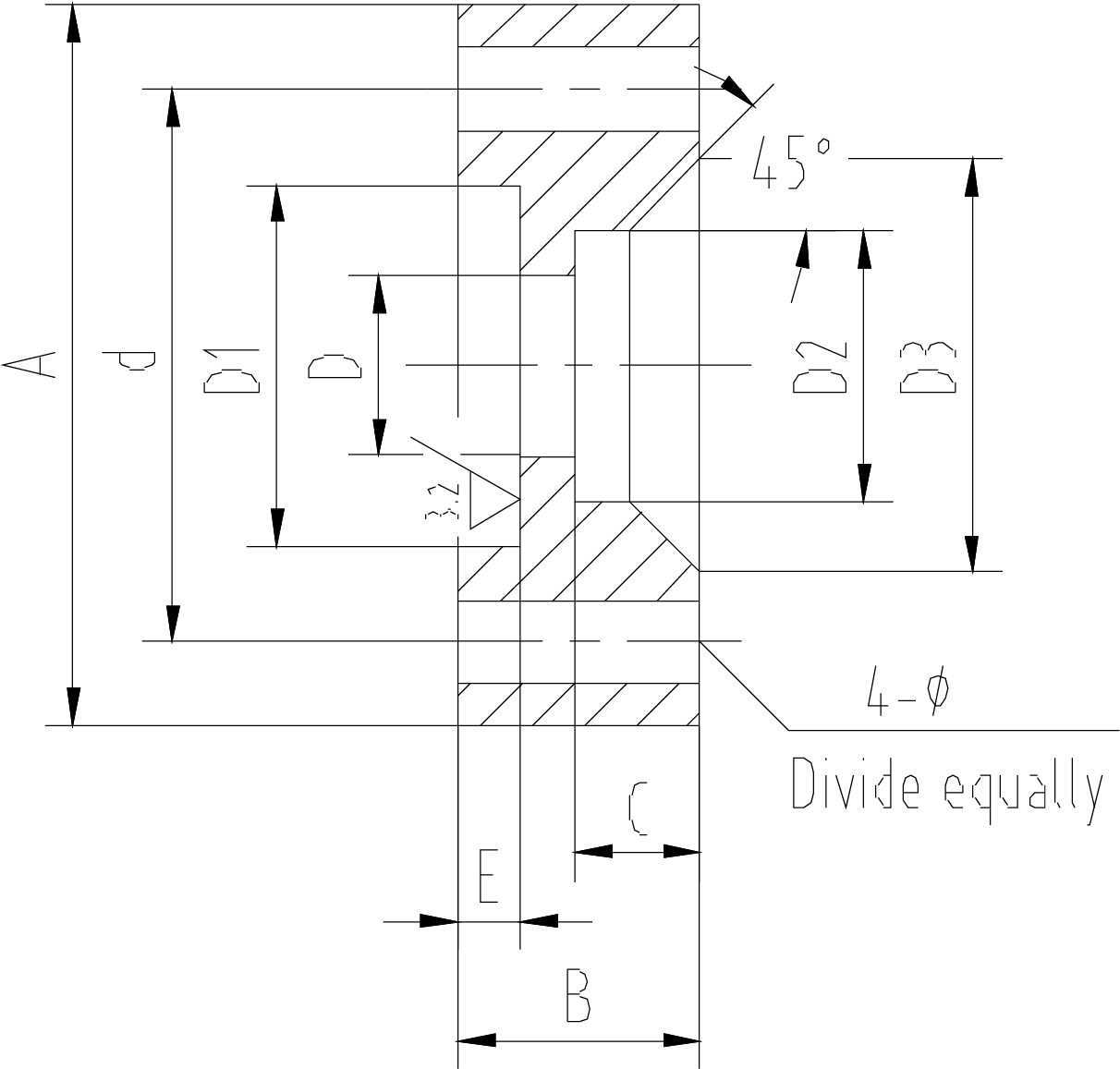

DIMENSIONS OF CONNECTING FLANGE

Connecting flange, please manufacture the product refer to the following size.

资源 44x

资源 54x

FLOW CURVES

资源 64x
