Our Tank Top Mounted RFB Series Check Valve Magnetic Return Filter provides an integrated solution for fluid control and filtration. This advanced filter features a check valve mechanism combined with a magnetic return filter, ensuring reliable one-way flow and effective removal of contaminants from hydraulic fluids. Mounted directly on the tank top, it offers easy installation and maintenance, while its robust design ensures durability and long service life. Whether used in heavy machinery or other industrial applications, our RFB Series Check Valve Magnetic Return Filter enhances system performance and reliability, making it an essential component for maintaining fluid cleanliness and protecting critical components.
Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.

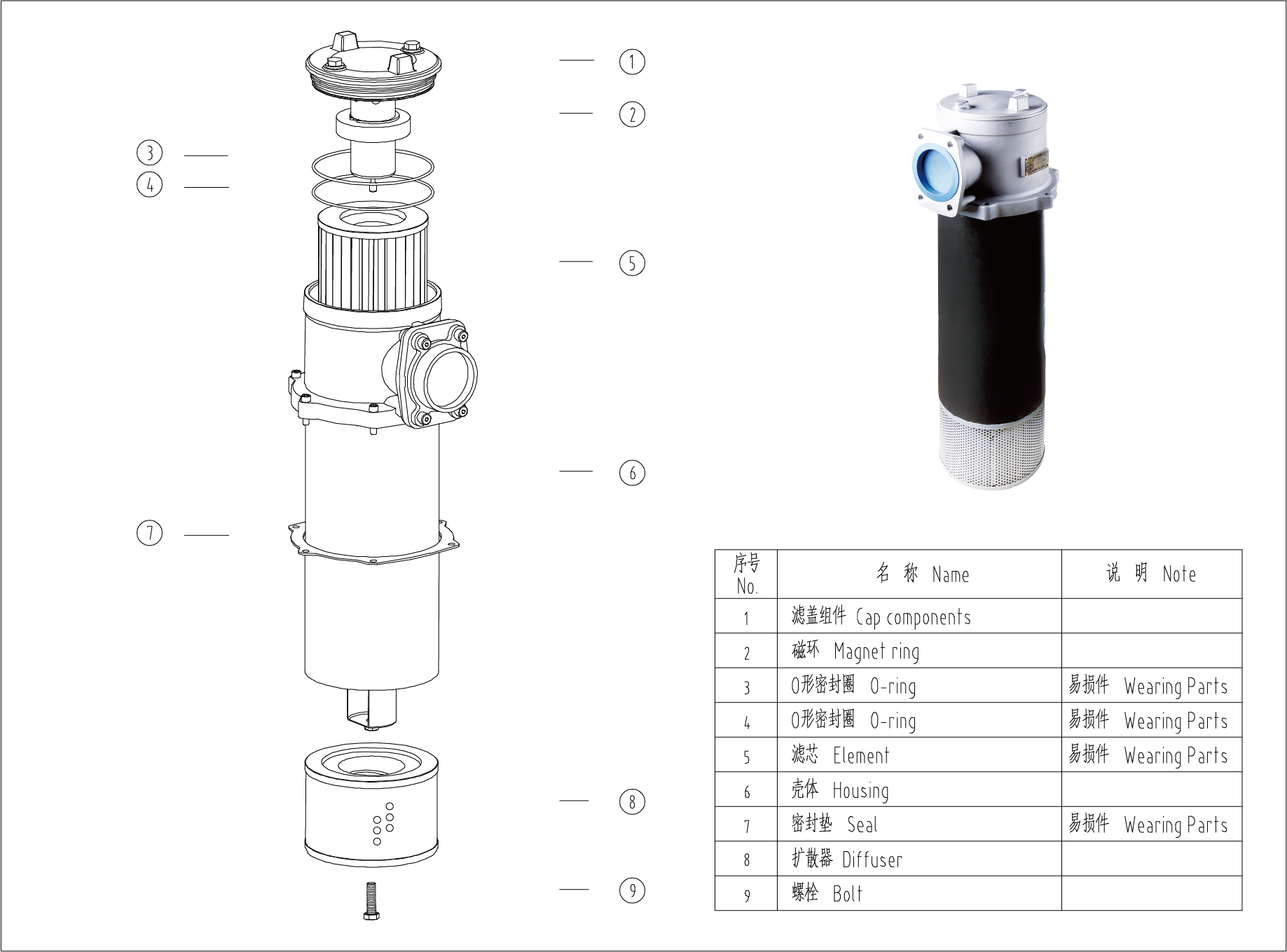

Magnetic Filter
The iron pollutants of filter medium can be absorbed by magnets inside of the filter in any hydraulic oil.
The diffuser can diffuse the direction of return oil underlarge flow, thus making it not easy to produce bubbles and reducing the occurrence of turbulent flow.
By-pass valve will crack to protect the normal operation of element and the system when pressure drop reaches to the set value.
When changing the element or maintaining the system, open the filter cover, self-sealing device will automatically shut down so as to cut off the oil-way and prevent it from flowing out.
| Type of Construction: Tank Top Mounted, Tank Side Mounted |
| Max Pressure: 1.6MPa |

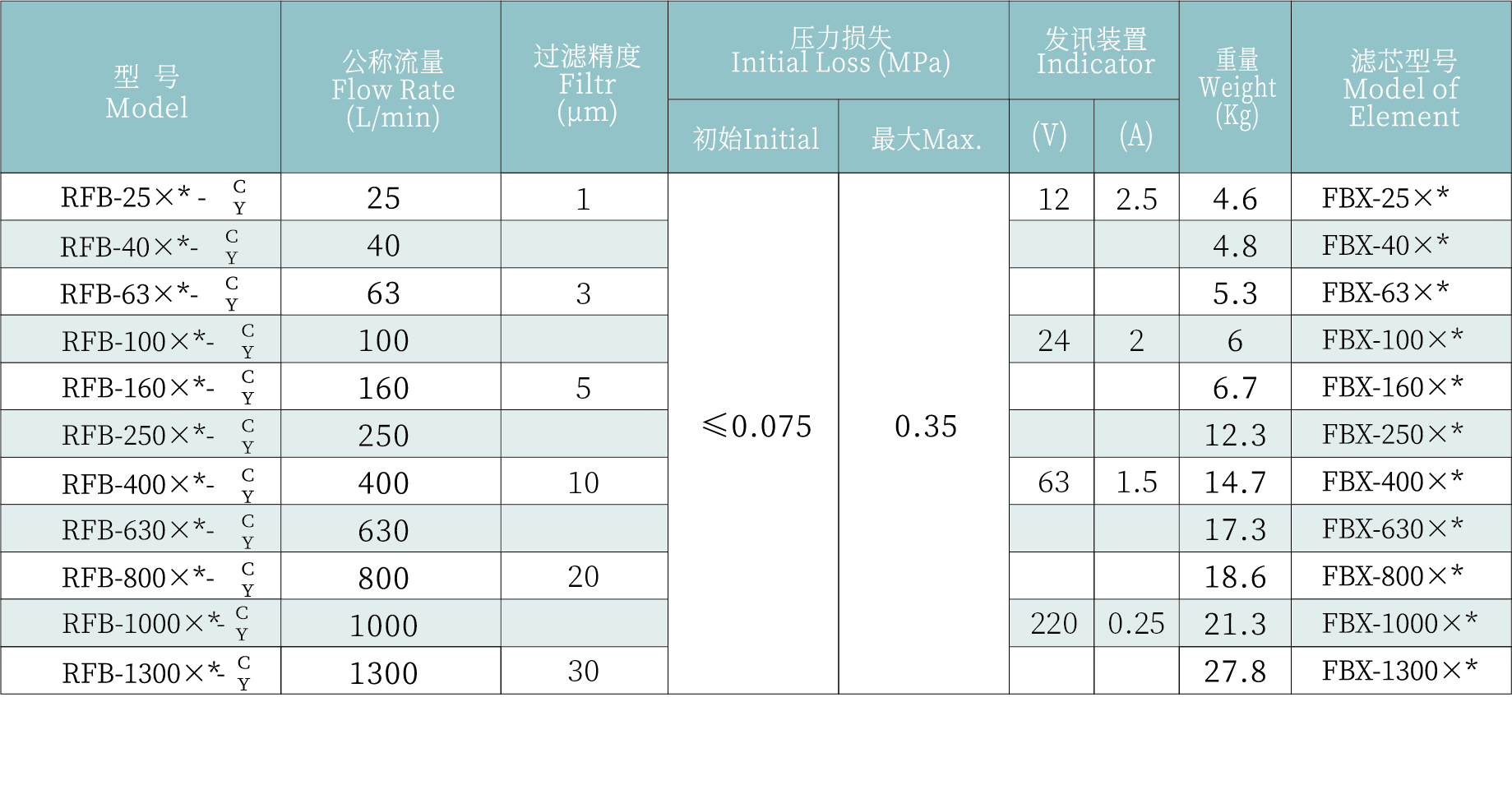

| Flow Range: 25~1300L/min |
| Connection: Flange |
| Operating Temp: -40°C~+130°C |
| Filter Media: Glass Fiber |
| Filtration Accuracy:3~30µm |
| Pressure Indicator Option:0.35MPa |
| For Visual and Electrical Indicator Use |
| Bowl Housing: Aluminum Alloy |
| Fluid Compatibility: Suitable for mineral oil, synthetic oil |
| Please contact with our sales staff if there is any additional media you need. |
