Inline Mounted Aluminum ZU-A Series Return Line Filter for Construction Machinery

Specifications

Type of Construction: Inline Mounted

Max pressure: 1.6MPa

Flow Range: 10~1000L/min

Connection: Flange/Thread/Manifold

Operating Temp:-40℃~+120℃

Filter Media: Glass Fiber, Cellulose, Wire Mesh

Filtration Accuracy: 3~30μm

Pressure Indicator Option: 0.35MPa

For Visual and Electrical Indicator Use

By-pass Valve Cracking Pressure: 0.4MPa

Bowl Housing: Aluminum Alloy

Sealing Material: NBR

Fluid Compatibility: Suitable for mineral oil, synthetic oil

Please contact our sales staff if there is any additional media you need.

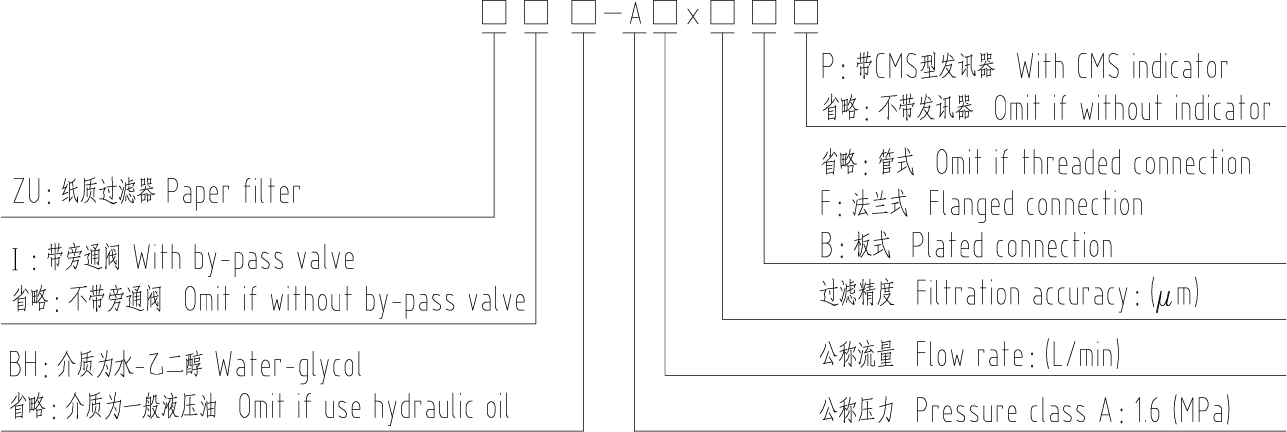

Mode Code

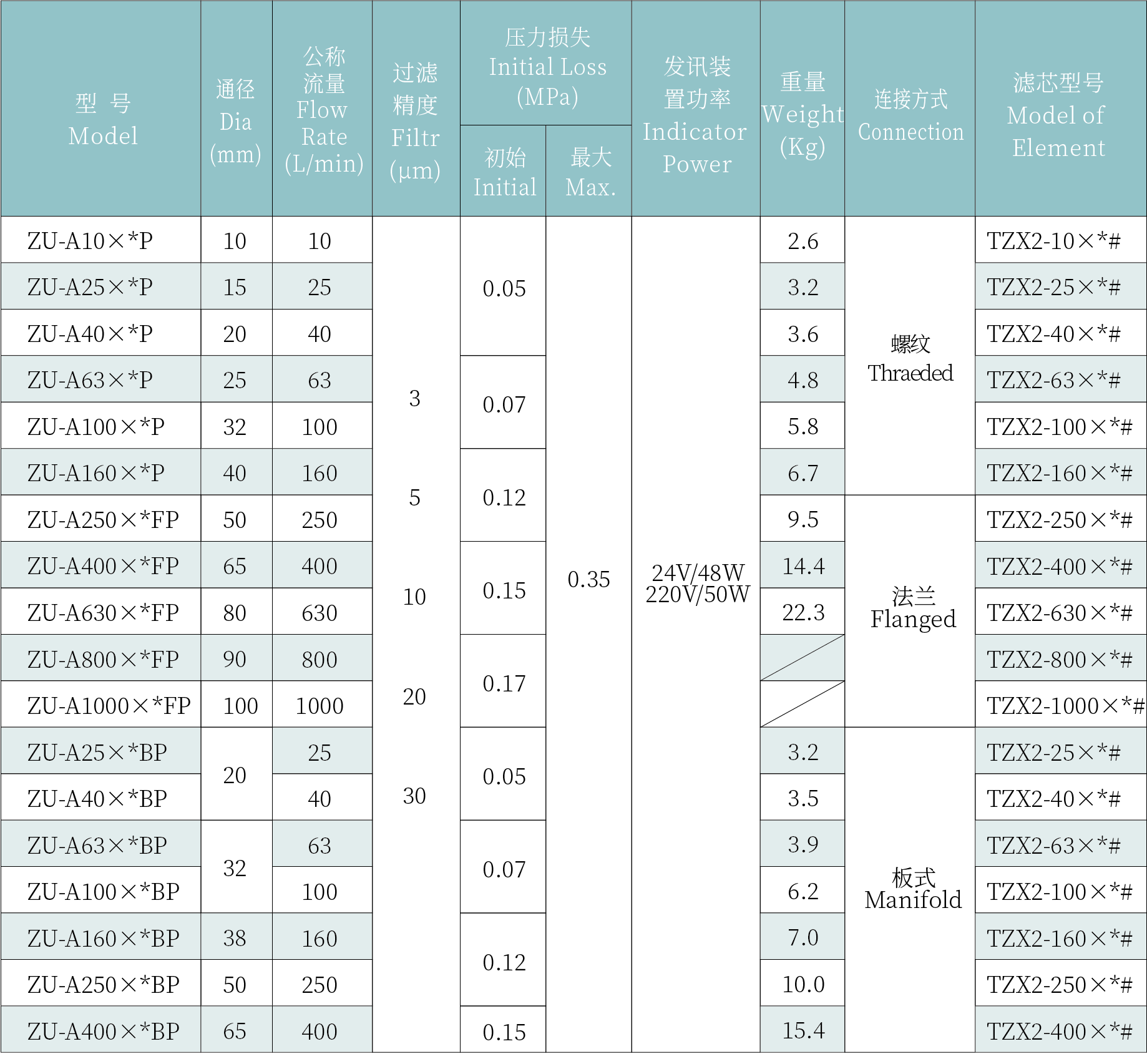

Technical Parameter

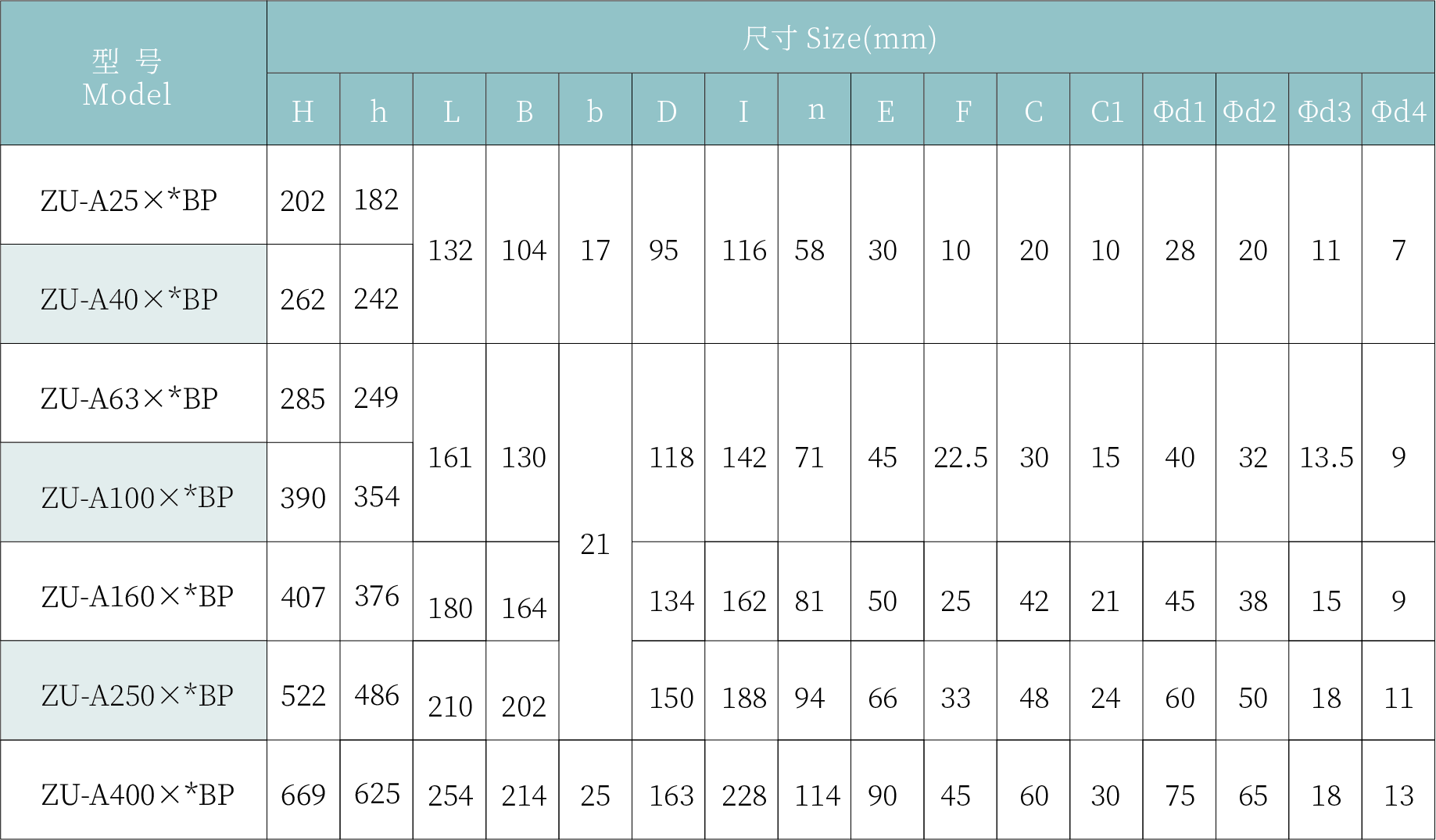

Mounting Diemension

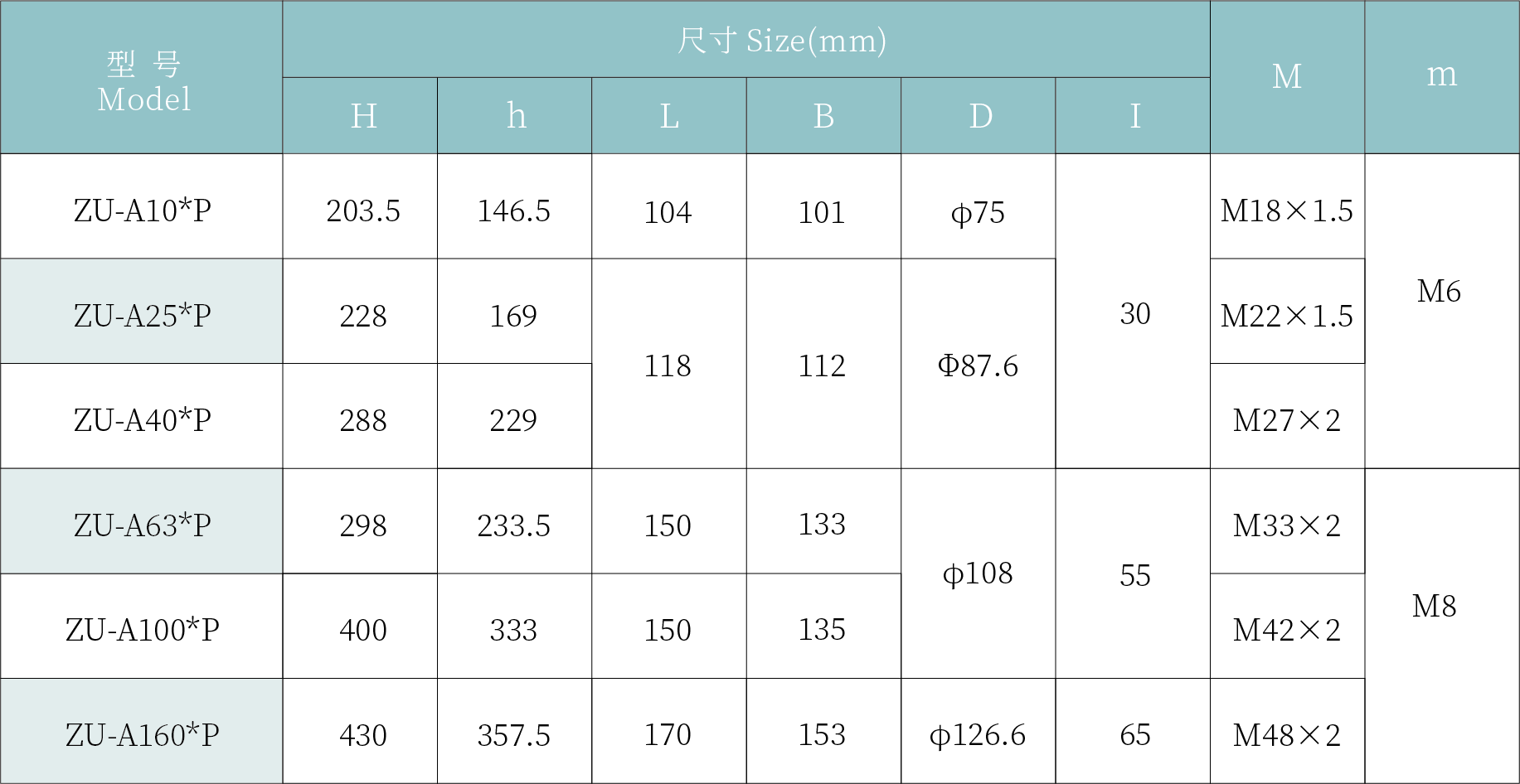

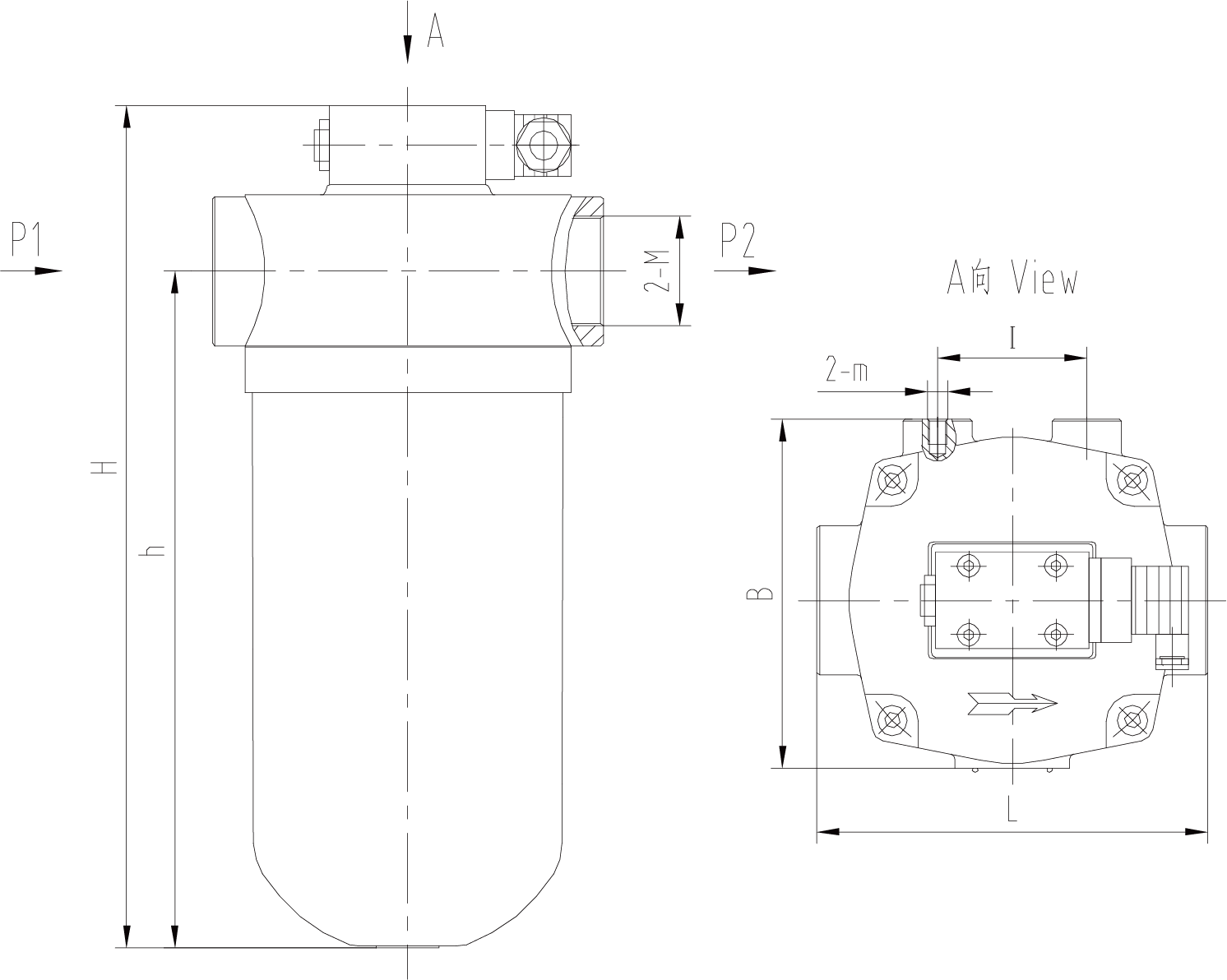

Threaded

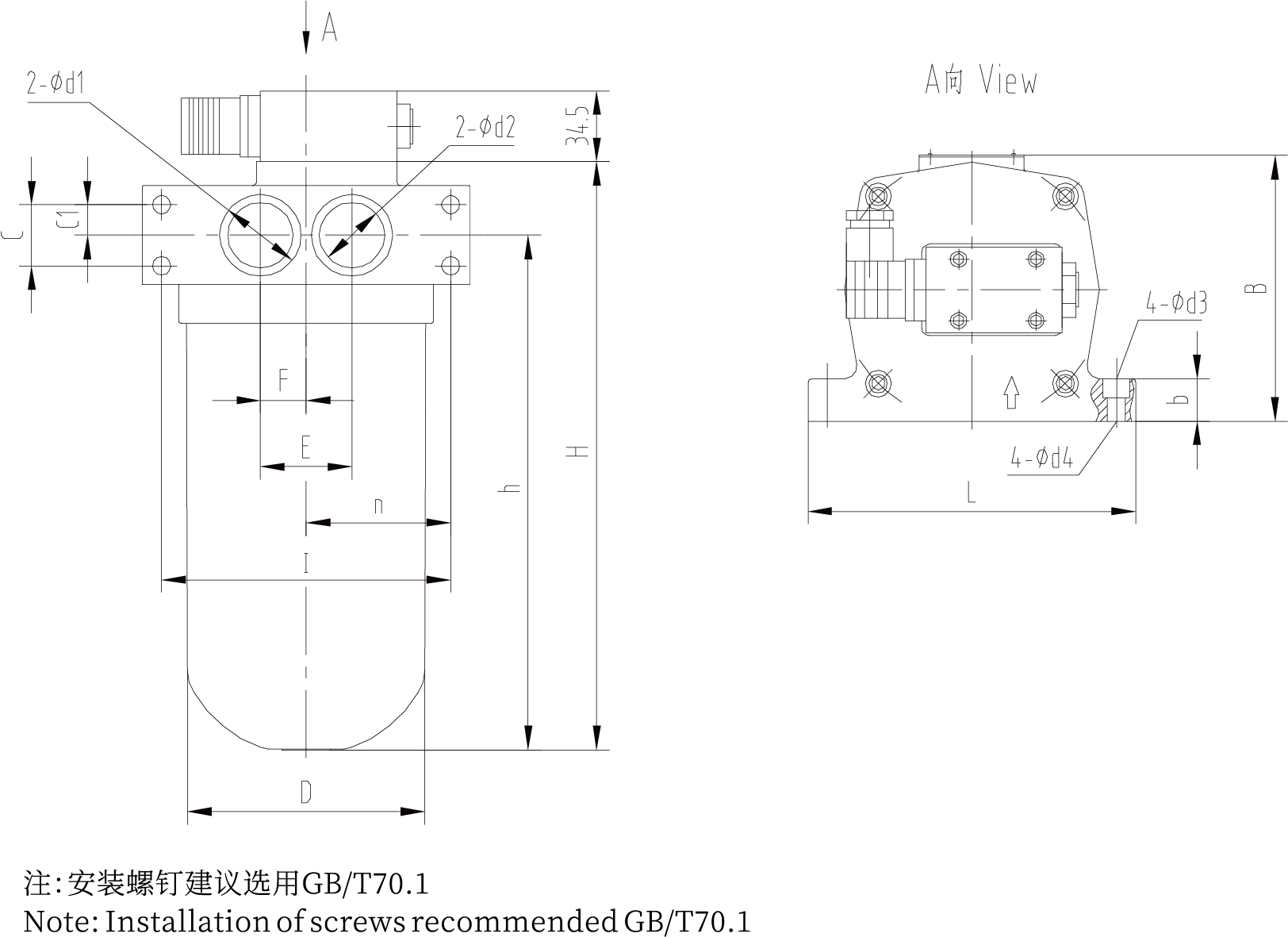

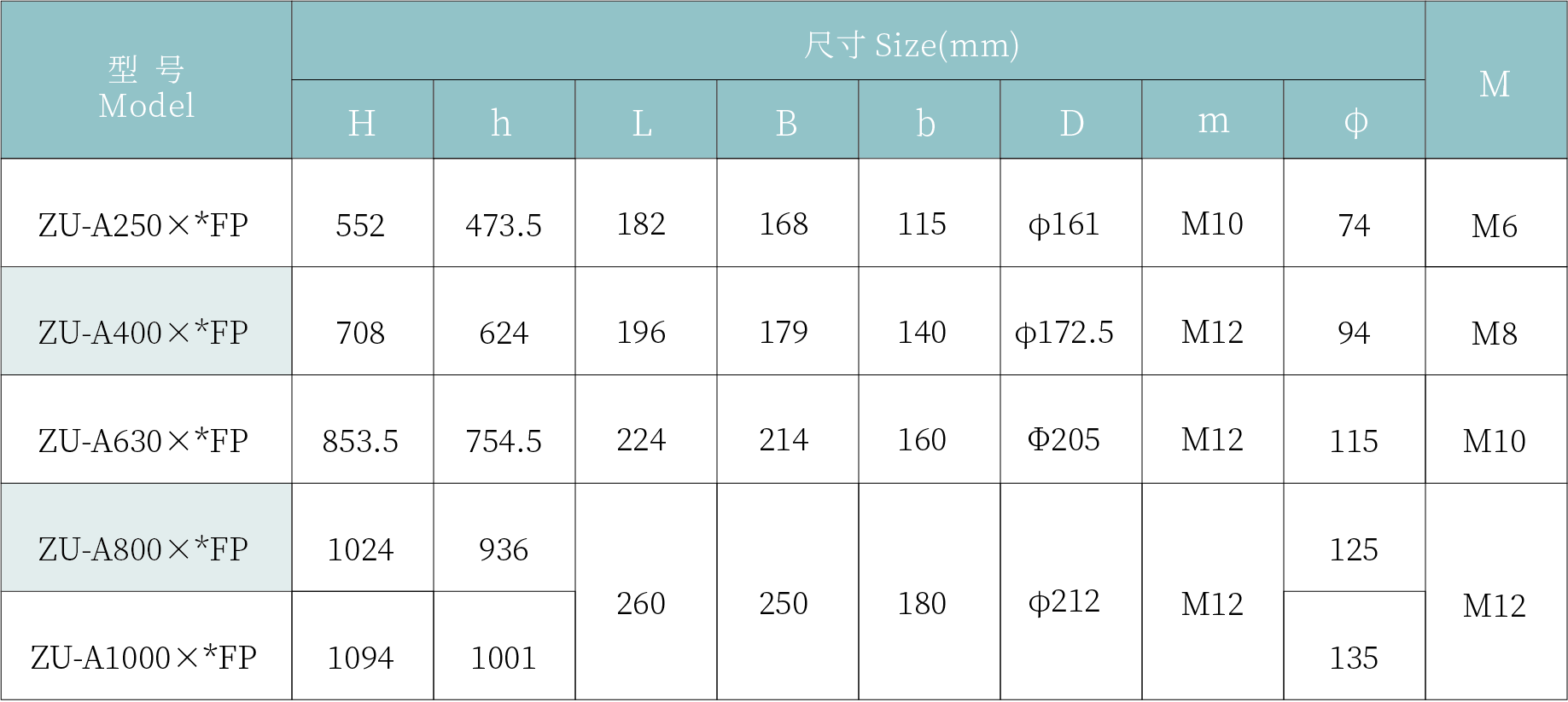

Flanged

Plated

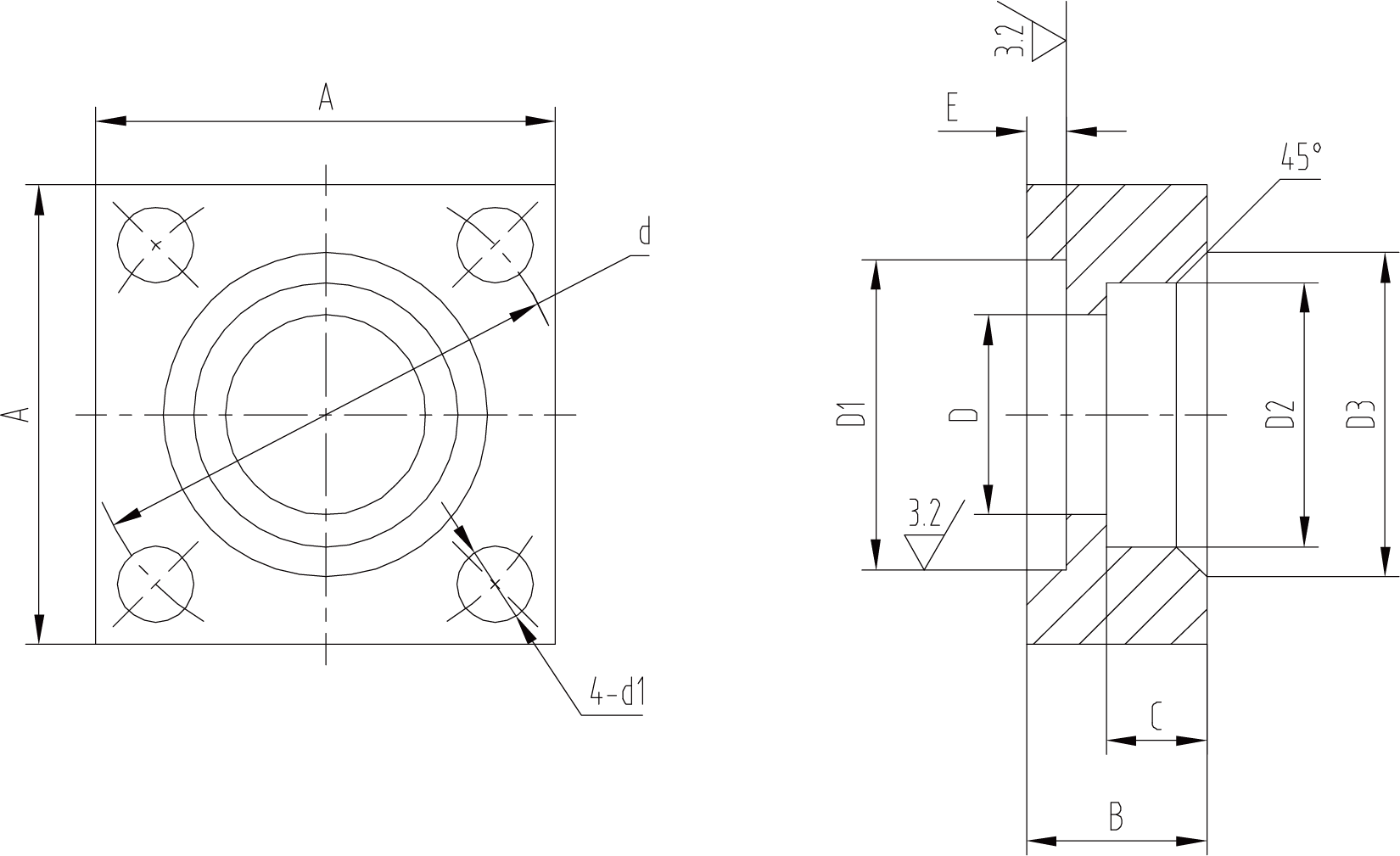

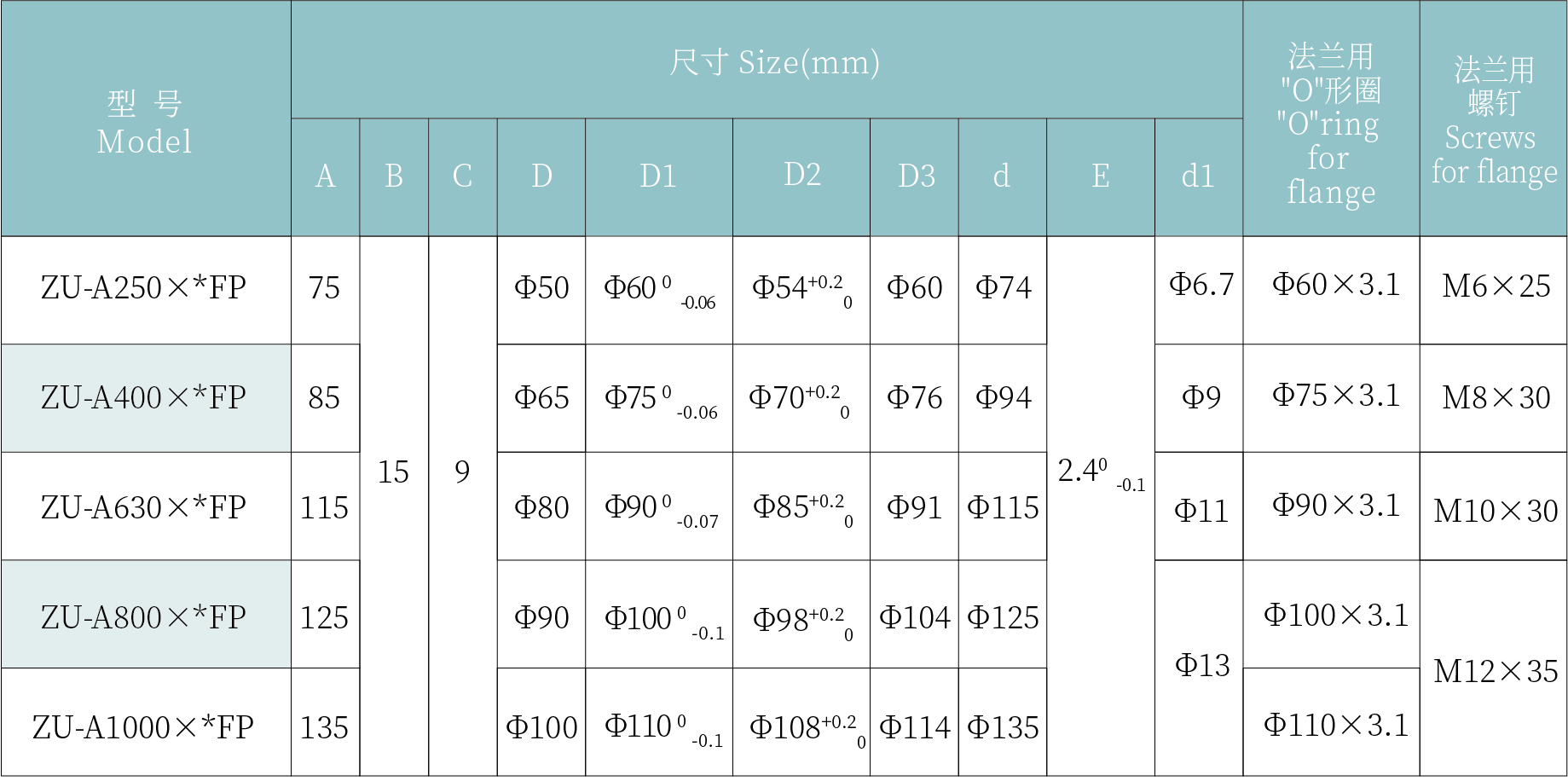

Connecting flange, Please Manufacture the product refer to the following size
