Micron XNL Series Tank Mounted Return Line Filter for Construction Machinery

Our Aluminum ZU-A Series Return Line Filter maintains fluid cleanliness in hydraulic systems. With glass fiber media, it removes contaminants like metal powder and rubber impurities. Installed in the return line, it ensures clean fluid returns to the tank, crucial for system longevity and performance.The ZU-A Series filter is easy to maintain and integrates seamlessly into existing systems. Its robust aluminum construction ensures durability and long life, even in tough environments. Suitable for construction machinery and industrial equipment, it protects critical components and boosts system efficiency.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

Features


Contamination Indicator

Visual or electrical contamination indicator can be installed on the filter to observe the contamination of element.


Self-Sealing Device

When maintaining the system, open the filter cover, self-sealing device will automatically shut down so as to cut off the oil-way and prevent it from flowing out.


By-pass Fuction (Optional)

By-pass valve will crack to protect the normal operation of element and the system when pressure drop reaches to the set value.


Magnetic Filter

The iron pollutants of filter medium can be absorbed by magnets inside of the filter in any hydraulic oil.


Specifications

Type of Construction: Inside Tank Mounted

Max Pressure: 0.6MPa

Flow Range: 25~1000L/min

Operating Temp: -40℃~+120℃

Filter Media: Glass Fiber

Filtration Accuracy:3~30μm

Pressure Indicator Option: 0.35MPa

For Visual and Electrical Indicator Use

By-pass Valve Cracking Pressure: 0.4MPa

Fluid Compatibility: Suitable for mineral oil, synthetic oil

Please contact our sales staff if there is any additopnal media you need.

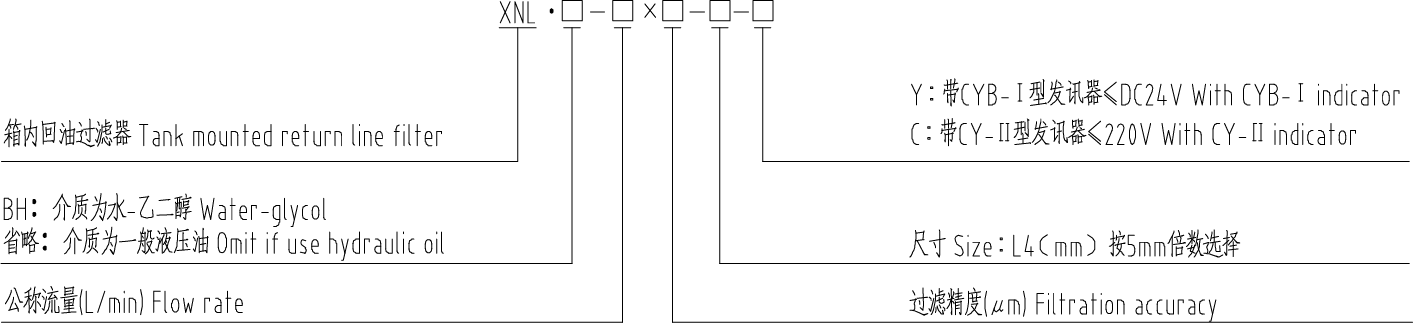

Mode Code


资源 14x


资源 24x

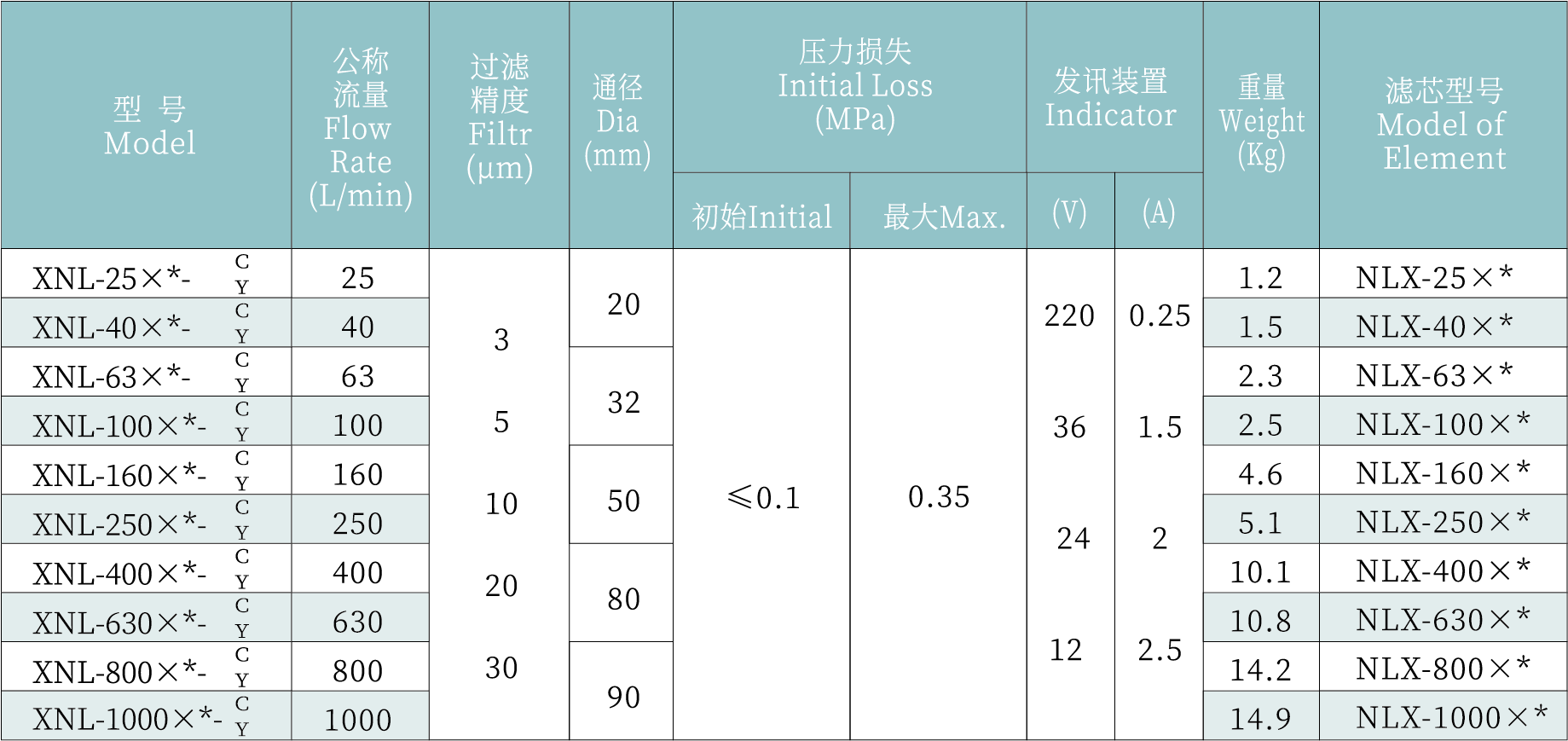

Technical Parameter


资源 34x

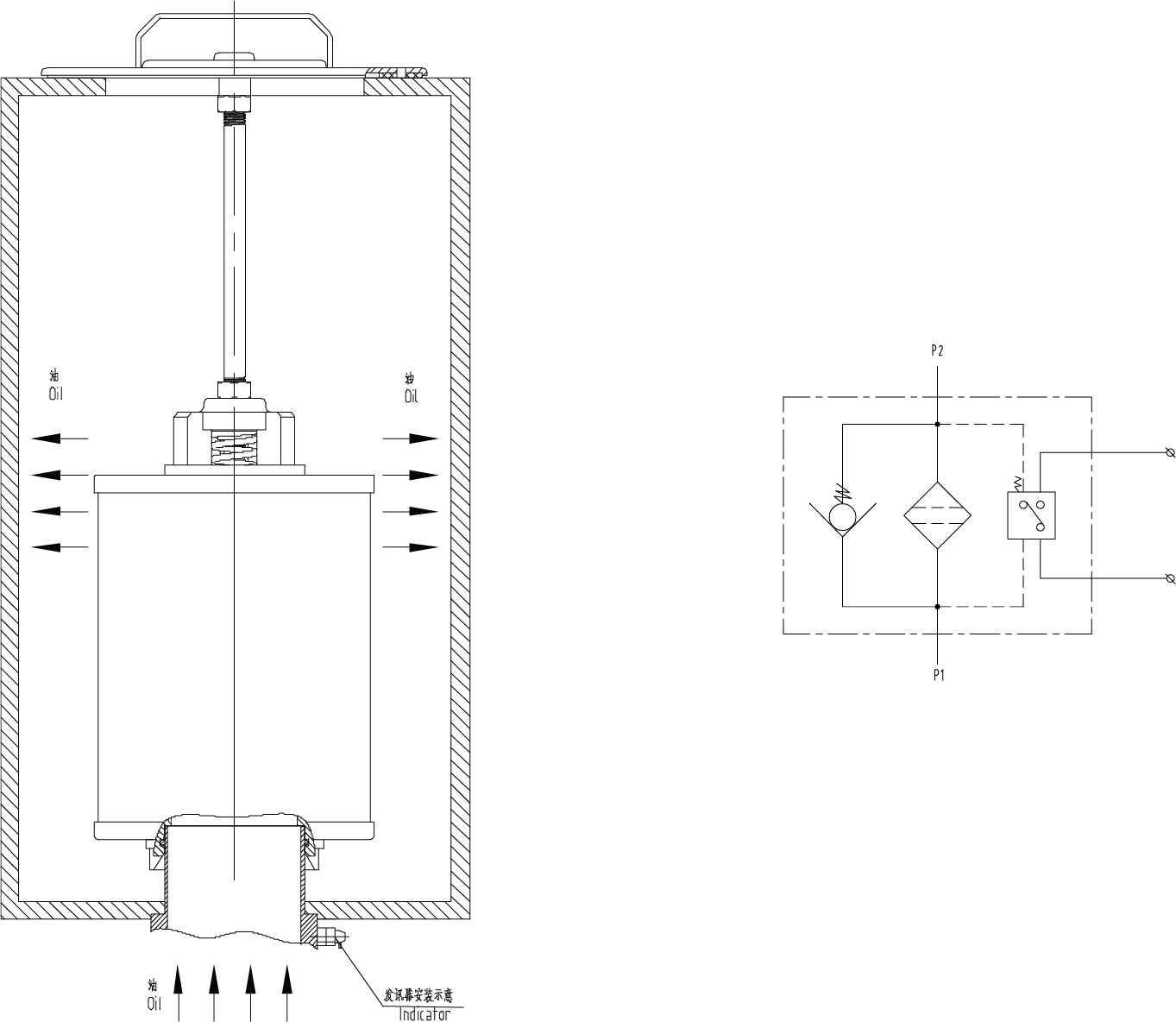

Mounting Instruction

资源 44x

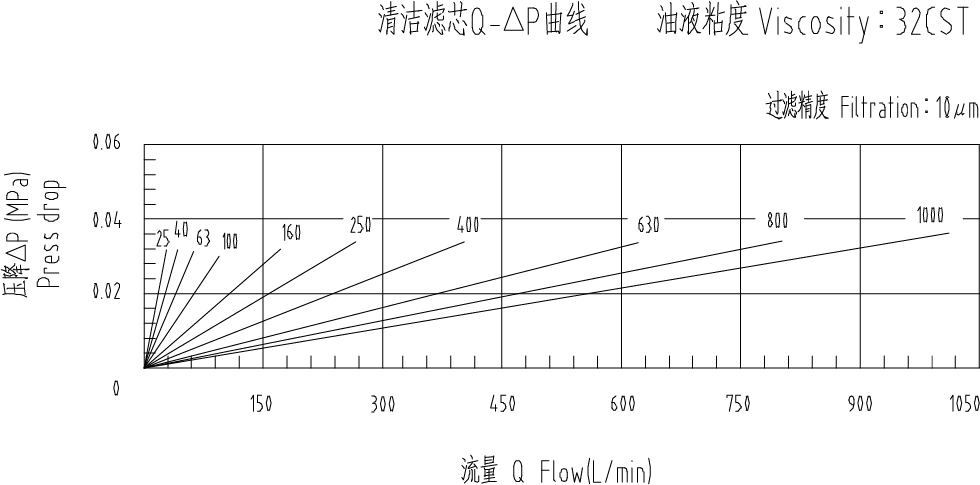

Element Pressure Drop against Flow Curves


资源 54x

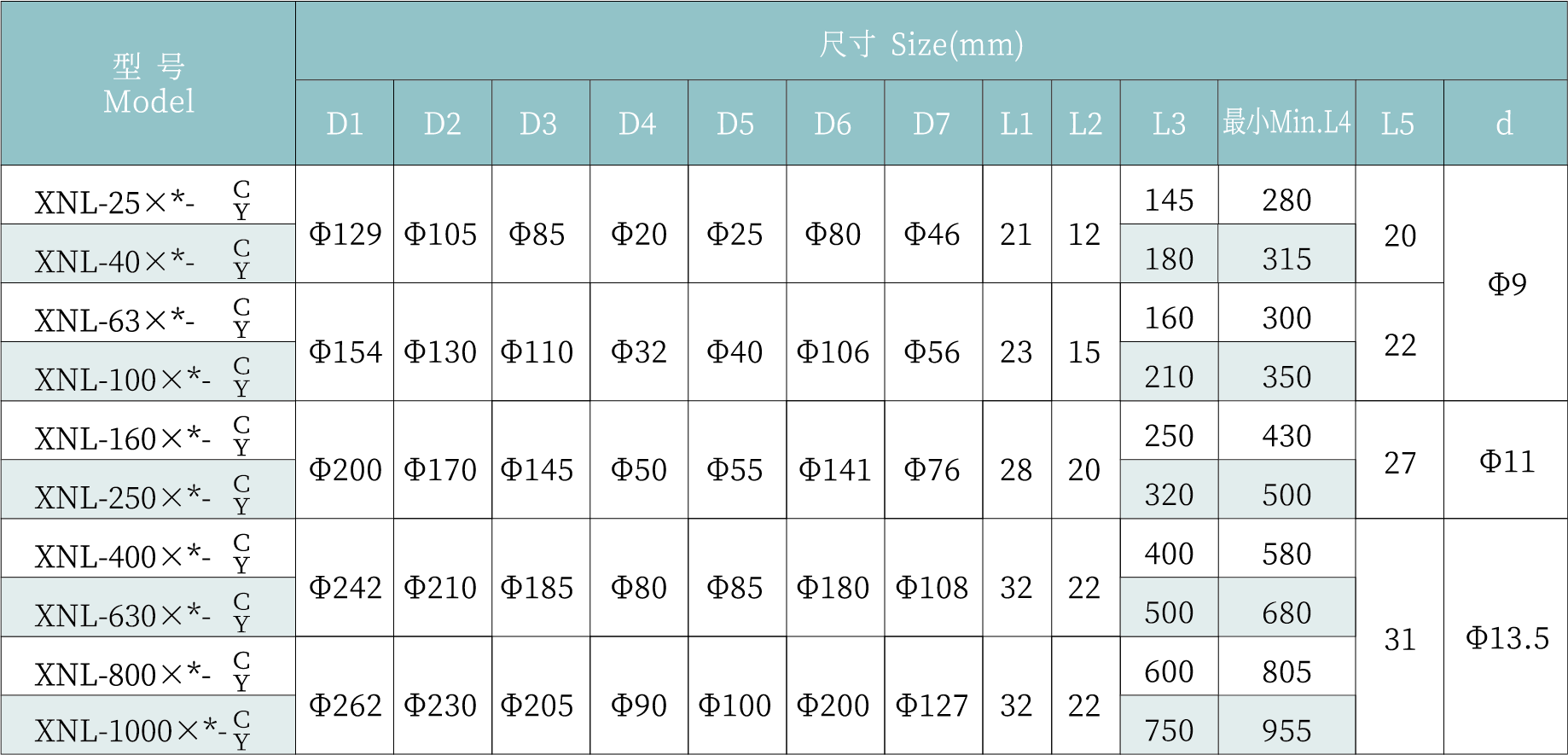

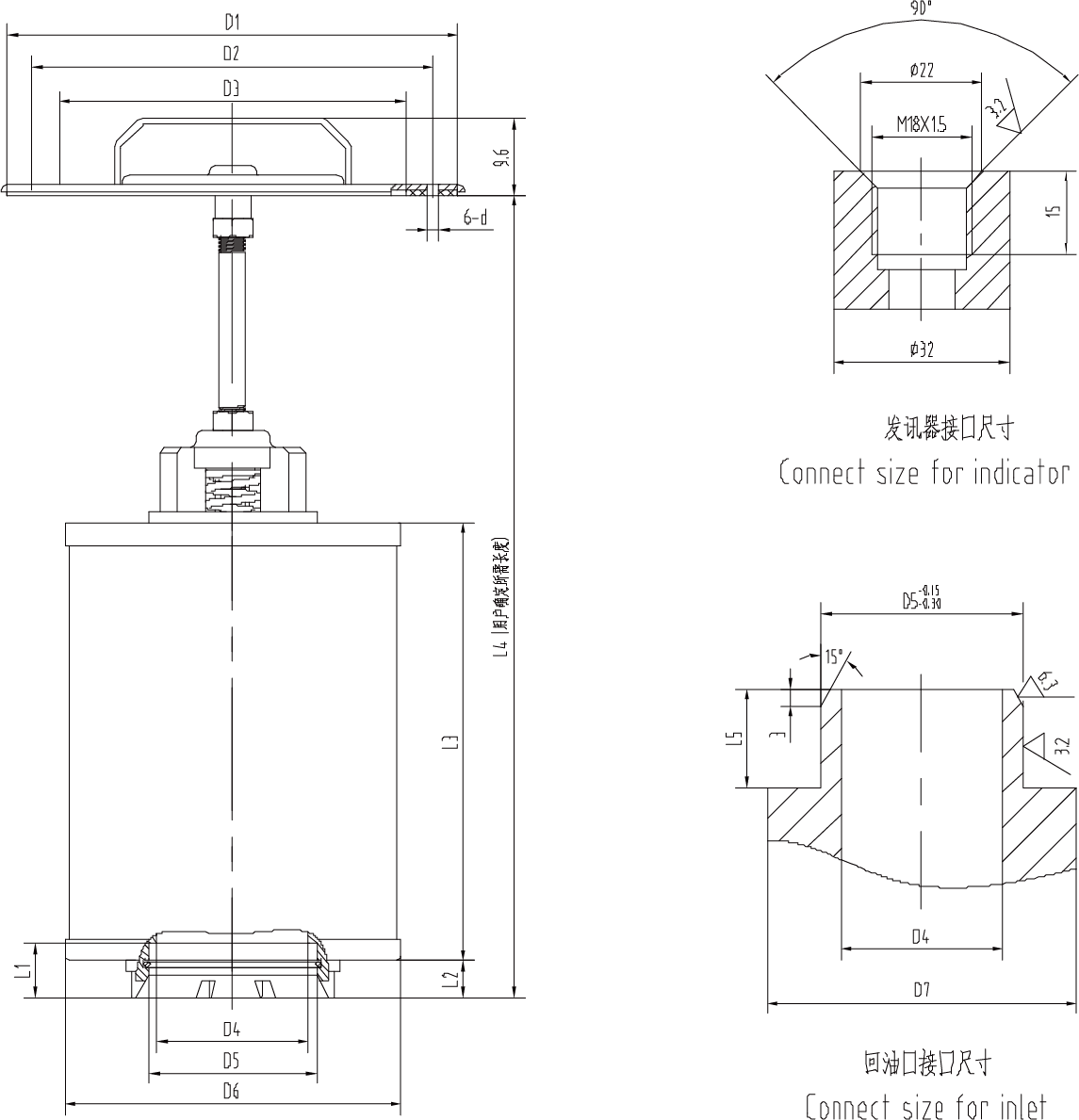

Mounting Diemension


资源 64x


资源 74x
